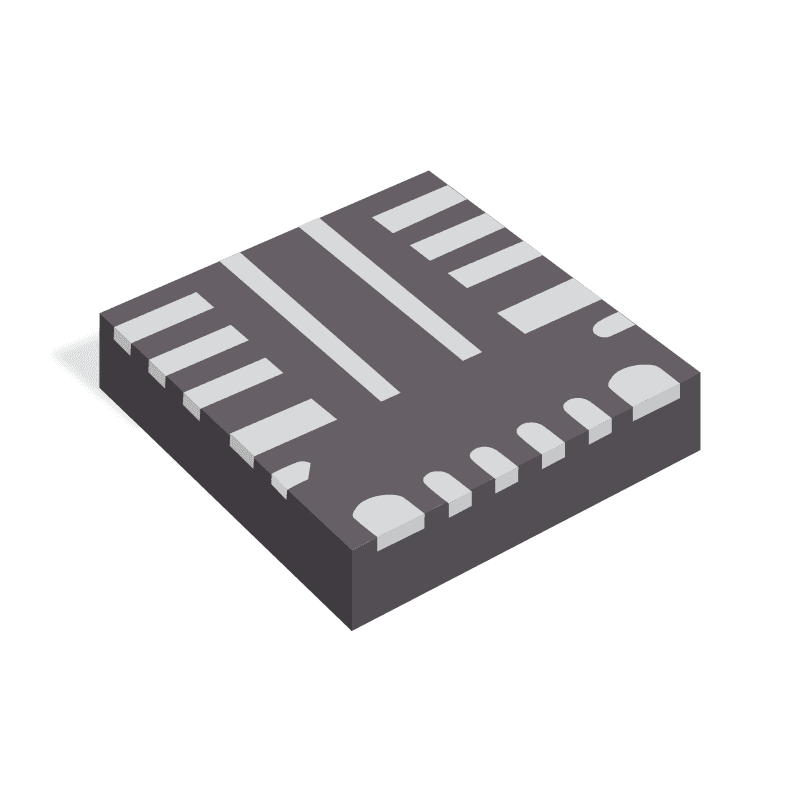

Texas Instruments TPS568215RNNR product image
Texas Instruments

TPS568215RNNR

4.5-V to 17-V, 8-A synchronous SWIFT™ buck converter with D-CAP3 control 18-VQFN-HR -40 to 125

Available6,000
Need this part?
Let us do the sourcing. Even if it's not available now, our team can track it down and tailor a solution just for you.

Fusion-Tested. Quality Guaranteed.

Combining advanced technology and proprietary data with expert engineering and quality teams to maintain consistent testing standards across all facilities.

Full Specifications

Switching Frequency
1.2MHz
Lifecycle Status
Production
Case/Package
VQFN-HR
Number of Pins
18
Number of Outputs
1
Max Junction Temperature (Tj)
150°C
Min Supply Voltage
4.5V
Max Supply Voltage
17V
Min Operating Temperature
-40°C
Max Operating Temperature
125°C
RoHS
Compliant
Height
1mm
Lead Free
Lead Free
Length
3.5mm
Manufacturer Lifecycle Status
Active
Max Duty Cycle
90%
Nominal Supply Current
600µA
Schedule B
8542390000
Width
3.5mm

Key Features

  • Input Voltage Range: 4.5 V to 17 V
  • Output Current Capability: 8 A
  • Switching Frequency: 1.2 MHz
  • Max Duty Cycle: 0.9
  • Compact 18-Pin VQFN-HR Package

About this Product

The Texas Instruments 4.5-V to 17-V 8-A synchronous SWIFT™ buck converter is designed for high-efficiency power management in a variety of applications. With its advanced D-CAP3 control architecture, this converter delivers reliable performance while maintaining a compact footprint in an 18-VQFN-HR package. Operating over a wide temperature range from -40°C to 125°C, it is ideal for demanding environments where efficiency and thermal performance are critical.

Common Uses

What is the 4.5-V to 17-V, 8-A Synchronous SWIFT™ Buck Converter Used For?

The 4.5-V to 17-V, 8-A synchronous SWIFT™ buck converter with D-CAP3 control is a high-performance DC-DC converter designed for efficient power management. With a switching frequency of 1.2MHz and a wide operating temperature range from -40°C to 125°C, this converter is suitable for a variety of applications requiring stable and reliable power supply. Its compact size and lead-free, RoHS-compliant design make it an ideal choice for modern electronic devices.
