MPN
21SX39-T
Manufacturer
Description

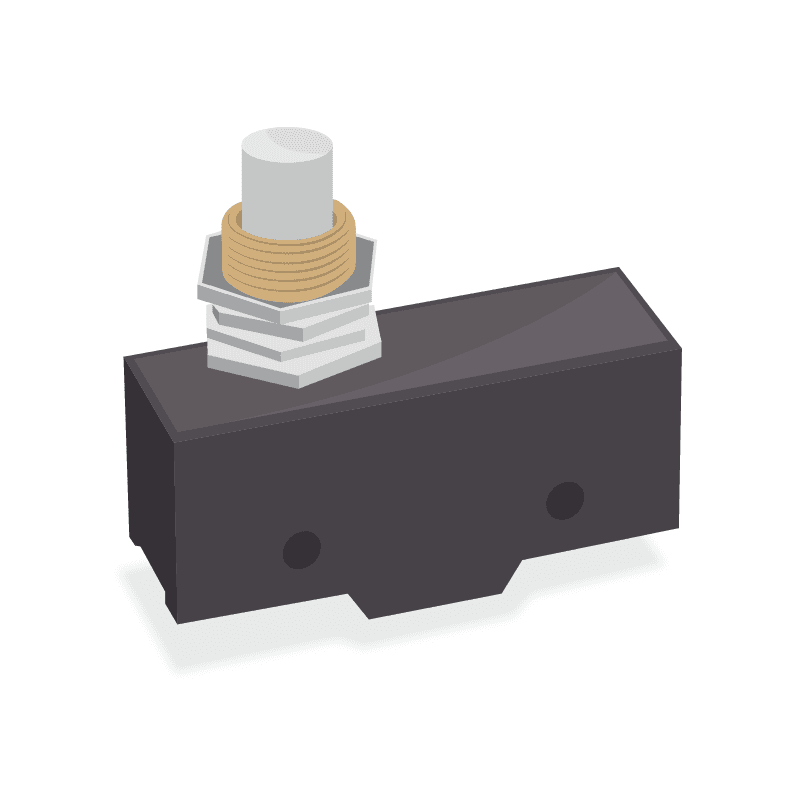

Switch Snap Action N.O./N.C. SPDT Pin Plunger Solder 7A 250VAC 1.39N Screw Mount
MPN
21SX39-T
Total Available Quantity
-
Specifications
Mount
Chassis Mount, Screw, Solder
Switch Function
On-Mom
Current Rating
7A
Voltage Rating (AC)
250V
Voltage Rating (DC)
28V
Orientation
Straight
Operating Force
139N
Pretravel
5mm
Overtravel
1mm
Differential Travel
12mm
Mechanical Life
1Mcycles
Housing Material
Phenolic
Throw Configuration
SPDT
Min Operating Temperature
-55°C
Max Operating Temperature
85°C
RoHS
Compliant
Actuator Material
Plastic
Approvals
CE, CSA, UL
Contact Current Rating
7A
Contact Material
Silver
Depth
5.1mm
Lead Free
Lead Free
Length
12.7mm
Max Current Rating
7A
Max Voltage Rating (AC)
250V
Number of Poles
1
Number of Positions
2
Operating Position
381µm
REACH SVHC
Unknown
Termination
Solder
Weight
136g
MPN
21SX39-T
