MPN
US1M-13-F
Manufacturer
Description

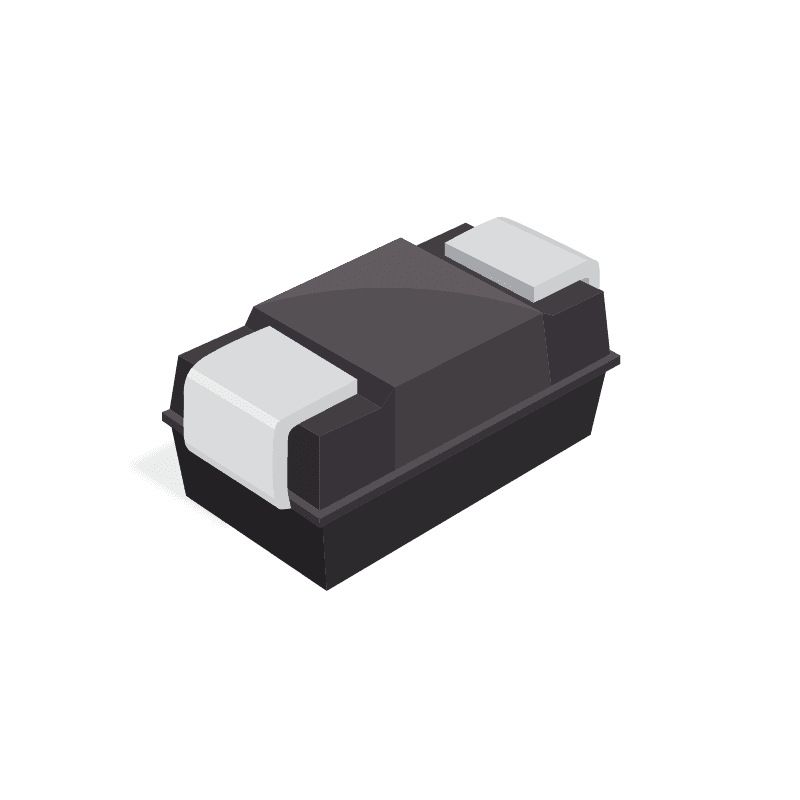

Diode Ultra Fast Recovery Rectifier 1K Volt 1A 2-Pin SMA Tape & Reel
MPN
US1M-13-F
Total Available Quantity
-
Specifications
Mount
Surface Mount
Case/Package
SMA
Number of Pins
2
Packaging
Tape & Reel
Forward Current
1A
Forward Voltage
1.7V
Reverse Voltage
1kV
Peak Reverse Current
5µA
Max Surge Current
30A
Average Rectified Current
1A
Recovery Time
75ns
Reverse Recovery Time
75ns
Capacitance
10pF
Min Operating Temperature
-65°C
Max Operating Temperature
150°C
Output Current
1A
RoHS
Compliant
Contact Plating
Tin
Current Rating
1A
Element Configuration
Single
Height
2.1mm
Lead Free
Lead Free
Length
4.6mm
Max Forward Surge Current (Ifsm)
30A
Max Junction Temperature (Tj)
150°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Voltage (DC)
1kV
Peak Non-Repetitive Surge Current
30A
Polarity
Standard
Radiation Hardening
No
REACH SVHC
No
Schedule B
8541100080
Termination
SMD/SMT
Voltage Rating (DC)
1kV
Width
2.92mm
