MPN
293D106X9035D2TE3
Manufacturer
Description

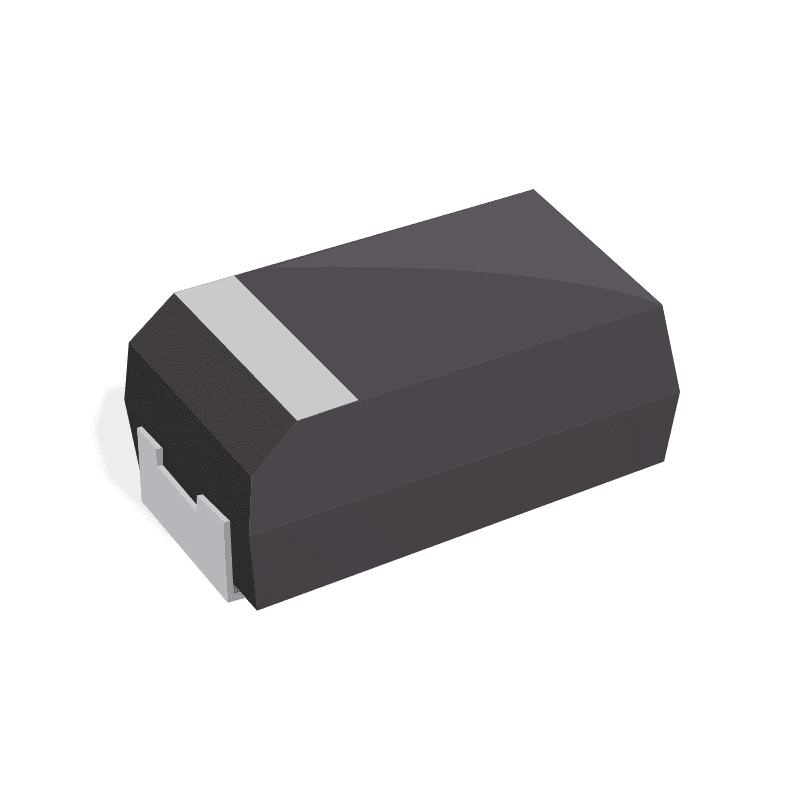

Cap Tant Solid 10uF 35V D CASE 10%( 7.3 X 4.3 X 2.8mm) Inward L SMD 7343-31 0.8 Ohm 125C T/R
MPN
293D106X9035D2TE3
Total Available Quantity
-
Specifications
Mount
PCB, Surface Mount
Case/Package
2917
Number of Pins
2
Packaging
Tape & Reel
Capacitance
10µF
Tolerance
10%
ESR (Equivalent Series Resistance)
800mΩ
Leakage Current
3.5µA
Voltage Rating
35V
Dissipation Factor
6%
Height - Seated (Max)
3.0988mm
Min Operating Temperature
-55°C
Max Operating Temperature
125°C
RoHS
Compliant
Case Code (Imperial)
2917
Case Code (Metric)
7343
Depth
4.3mm
Dielectric Material
Tantalum
Features
General Purpose
Height
2.8mm
Lead Free
Lead Free
Length
7.3mm
Polarity
Polar
Radiation Hardening
No
REACH SVHC
Unknown
Ripple Current
260mA
Schedule B
8532210050
Termination
SMD/SMT
Voltage
35V
Voltage Rating (DC)
35V
Width
4.2926mm
